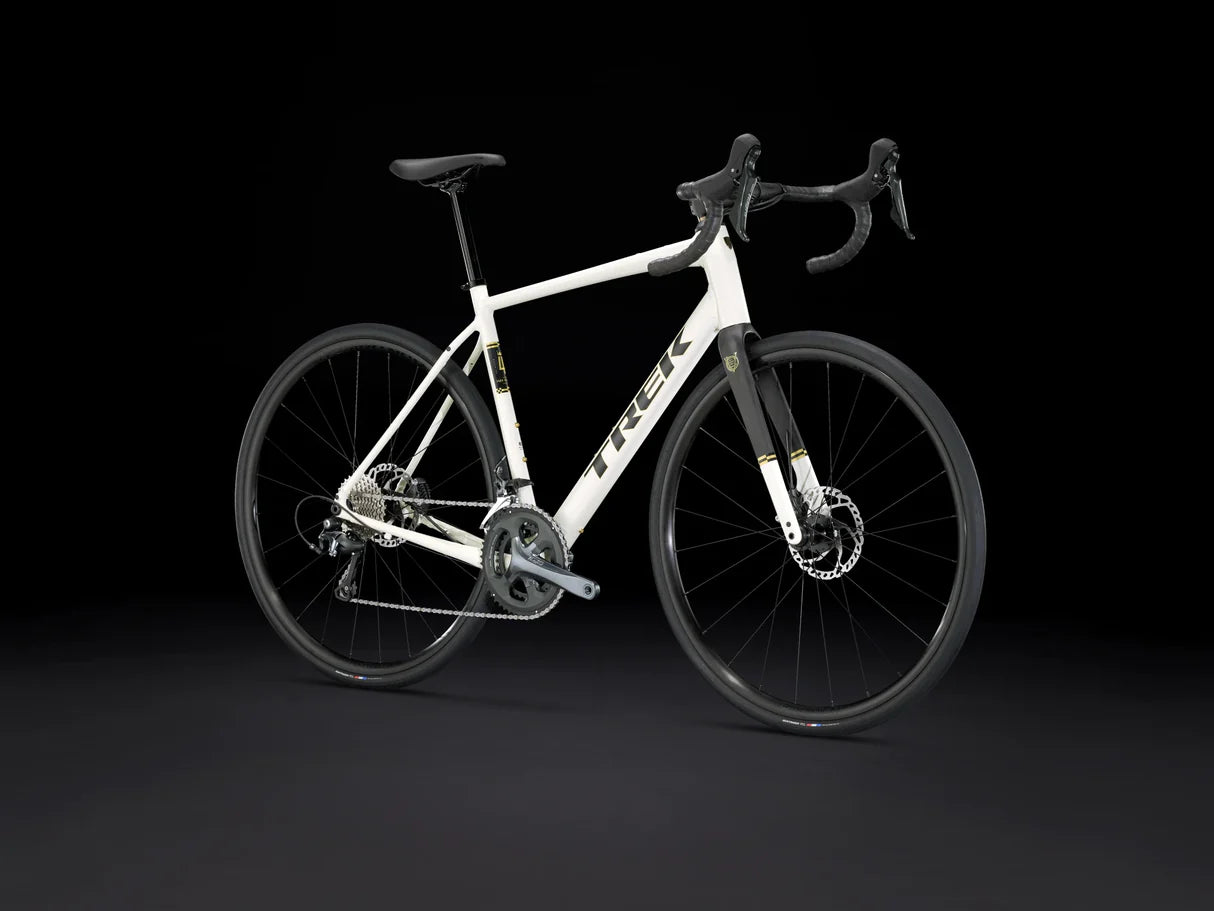

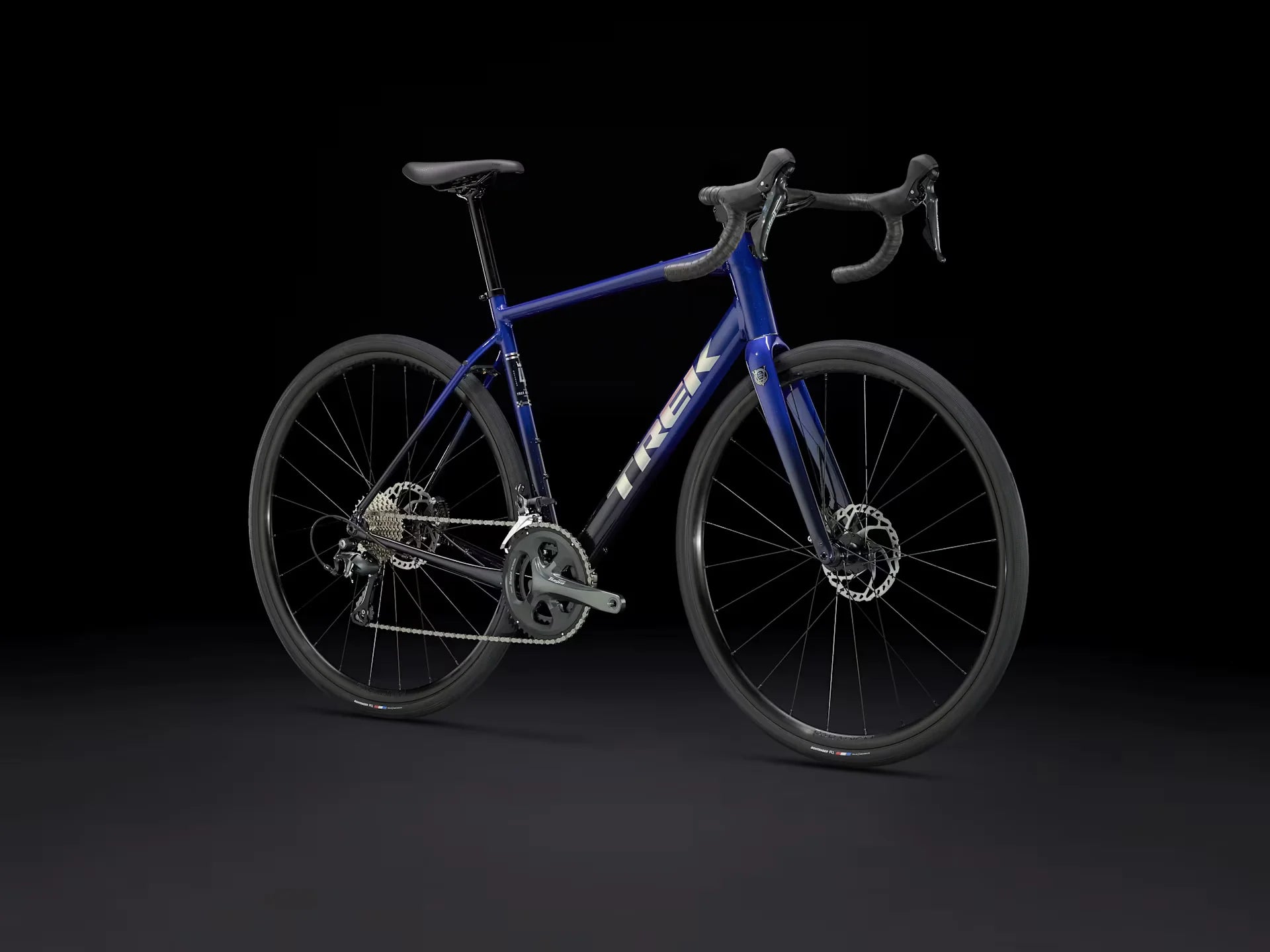

Trek Domane AL4

Trek Domane AL4

$1,799.99 USD
$1,799.99 USD
Sale Sold out
Title
Color: Era White
size

Domane AL 4 is a speedy and versatile road bike that's a perfect starting point for anyone looking to get into road riding. With an Alpha Aluminum frame, clearance for larger tires, a 10-speed Shimano Tiagra drivetrain, top tube mounts, and an all-day road comfort geometry — Domane AL 4 is perfect for casual pedaling, group rides, fast commutes, and even venturing beyond paved paths to most gravel roads.

Frame
100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle
Fork
Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle

Weight
56 - 10.35 kg / 22.82 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Shifter
Shimano Tiagra R4720, 10 speed
Front derailleur
Shimano Tiagra 4700, 31.8mm clamp
Rear derailleur
Shimano Tiagra 4700, long cage, 34T max cog
*Crank
Size: 44
Shimano Tiagra 4700, 50/34, 165mm length
Size: 49, 52
Shimano Tiagra 4700, 50/34, 170mm length
Size: 54, 56
Shimano Tiagra 4700, 50/34, 172.5mm length
Size: 58, 61
Shimano Tiagra 4700, 50/34, 175mm length
Bottom bracket
Shimano RS501 BSA
Cassette
Shimano HG500, 11-32, 10 speed
Chain
Shimano Tiagra HG54, 10 speed
Max chainring size
1x: 50T, 2x: 50/34

Hub front
Formula RX-512 alloy, 6-bolt, 100x12mm thru axle
Skewer front
Bontrager Switch chamfered thru axle
Hub rear
Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Rim
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
Spokes
14g stainless steel, black
Tire
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm

Saddle
Verse Short, steel rails, 145mm width
*Seatpost
Size: 44, 49
Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length
Size: 52, 54, 56, 58, 61
Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length
*Handlebar
Size: 44
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width
Size: 44, 49
Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 38cm width
Size: 49
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width
Size: 52
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width
Size: 52
Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 40cm width
Size: 54, 56
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width
Size: 54, 56
Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width
Size: 58, 61
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 44cm control width, 48cm drops width
Size: 58, 61
Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width
Handlebar tape
Bontrager Supertack Perf tape
*Stem
Size: 44
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
Size: 49
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: 52, 54
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: 56, 58
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
Size: 61
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
Brake
Shimano Tiagra hydraulic disc, flat mount
Brake rotor
Shimano RT66, 6-bolt, 160mm
Rotor size
Max brake rotor sizes: 160mm front & rear
